03 — Compliance & Security¶

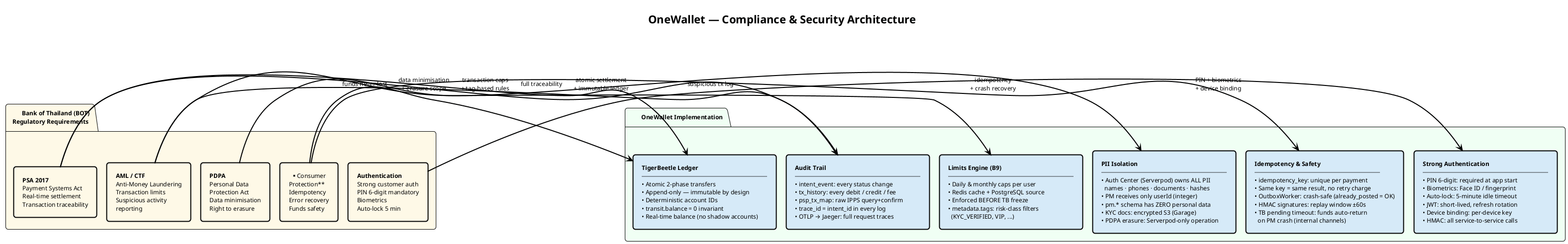

Compliance Map

Bank of Thailand Requirements¶

Payment Systems Act B.E. 2560 (PSA 2017)¶

The Act requires licensed payment service providers to ensure real-time settlement finality, full transaction traceability, and system resilience.

Requirement	Implementation	Where
Real-time settlement finality	TigerBeetle atomic transfers — PENDING → POST is a single atomic operation. No intermediate states visible to users.	`TigerBeetle`
Transaction traceability	Every status change is recorded in `pm.intent_event` with timestamp, actor, and reason. Raw PSP responses stored in `payload` JSONB.	`pm.intent_event`
Unique transaction reference	Each intent has an immutable `intentId` (UUID) and an `idempotencyKey`. The `trace_id = intent_id` in every log line and OTLP span.	PM + all logs
System resilience	OutboxWorker crash recovery, Status Poller, TigerBeetle pending timeout, Redis Streams DLQ for external adapters.	PM background workers
Audit log retention	`pm.intent_event` and `pm.tx_history` are append-only. TigerBeetle transfers are physically immutable.	PostgreSQL + TigerBeetle

AML / CTF — Anti-Money Laundering¶

Requirement	Implementation	Where
Transaction limits	Daily and monthly caps enforced in the Limits Engine before funds are frozen. Limit exceeded → 429, no TB operation created.	`pm.payment_limit` + Redis
User risk classification	Auth Center passes `metadata.tags` (`kyc_verified`, `vip`, `merchant_share`, …) with every intent. Fee rules and limits use `tagsInclude`/`tagsExclude` to apply different rules to different user segments.	Rule Engine + Limits Engine
Suspicious activity detection	Limits Engine records running totals in Redis with day-level precision. Breaches generate structured log entries with `intent_id` and `user_id` for ops review. Phase 2C: dedicated reconciliation alerts table.	Redis + pino structured logs
Full payment history	`pm.tx_history` stores every debit, credit, and fee row with direction, amount, currency, timestamp, and intent reference. Queryable for any user, any time range.	`pm.tx_history`

PDPA — Personal Data Protection Act¶

A critical architectural decision: PM contains zero PII.

Auth Center (Serverpod / public schema):
  ✓  Full name, phone number, national ID hash
  ✓  KYC documents (encrypted, Garage S3)
  ✓  Device fingerprints, biometric keys

Payment Manager (pm schema):
  ✓  userId (integer — an opaque reference)
  ✓  amounts, currencies, timestamps
  ✗  No names, no phone numbers, no documents

Why this matters for PDPA: - A PDPA erasure request only affects the public schema in Auth Center. PM data does not need to change. - A data breach in PM exposes transaction amounts and timestamps — not personal identifiable information. - KYC documents are stored encrypted in a separate Garage S3 bucket with independent access controls.

display name fields (fromName, toName, comment) in B6.1 are user-provided display labels — not resolved PII. They are passed by the caller (Auth Center) and treated as payment memo text.

Consumer Protection¶

Requirement	Implementation
No duplicate charges	`idempotencyKey` is unique per payment. Submitting the same key twice returns the original result — no second charge, no error.
Funds safety during failures	TigerBeetle PENDING holds funds safely. They are only released on explicit POST (success) or VOID (failure/cancel). Auto-expire (300s timeout) applies to internal channels as a failsafe.
Transparent fee disclosure	`POST /intents/quote` returns fee breakdown before the user commits. `preFeeAmount` and `postFeeAmount` are returned separately in every intent response so the app can show exactly who pays what.
Cancellation	Intents in `CREATED` status can be cancelled by the user. Funds are only frozen at `AUTHORIZED` — no lock-in before confirmation.

Strong Customer Authentication (BOT / NatBank)¶

Requirement	Status	Implementation
PIN 6 digits	✅ Enforced	Required at app launch, stored hashed, never transmitted
Biometric authentication	✅ Enforced	Face ID / fingerprint for transaction confirmation
Auto-lock after 5 minutes idle	✅ Enforced	Dart timer in Flutter; reactivation requires PIN re-entry
Device binding	✅ Enforced	JWT tied to device key. Token on new device requires re-authentication
Short-lived JWT	✅ Enforced	Access tokens expire in 15 minutes; refresh rotation prevents token theft

Security Architecture¶

HMAC Authentication — Service-to-Service¶

Every call into PM is signed. There are no "internal trusted" callers.

Signing string:
  X-Timestamp + "\n" + METHOD + "\n" + PATH + "\n" + sha256_hex(body)

Headers:
  X-Service-Id:  auth-center | nginx-gateway | miniapp-tours | ...
  X-Timestamp:   unix seconds (±60s window — replay protection)
  X-Signature:   hex(hmac_sha256(signing_string, service_secret))
  X-User-Id:     12345  (required for user-context calls)

Registered service principals:

Service ID	Who	Permissions
`auth-center`	Serverpod	All user payment types, `userId` required
`nginx-gateway`	nginx	Read-only (balance, history)
`miniapp-{id}`	Merchant backend	`MINIAPP_CHARGE`, `MINIAPP_CREDIT` for own merchant only
`internal-pm`	PM cron jobs	System movements, no `X-User-Id`

Secrets are stored hashed (bcrypt) in pm.service_key. Rotation = new row, old row deactivated.

Network Isolation¶

POST /intents is blocked at nginx on the public ingress — mini-app backends can only call it from the internal network
PSP adapters have no direct access to TigerBeetle — only through PM
Admin Panel has no direct access to PM's pm schema — only through Auth Center / PM API

Observability — Every Transaction is Traceable¶

trace_id = intent_id  (set at the start of POST /intents)

Propagation:
  Serverpod → PM:      X-Trace-Id header (W3C traceparent)
  PM → TigerBeetle:    user_data_128 = intentId (on every transfer)
  PM → Redis Streams:  trace_id field in every message
  PM → logs:           intent_id in every pino log line

Export: OTLP → Jaeger / Grafana Tempo
  Full chain visible in one trace:
  Flutter request → Auth Center → PM → TigerBeetle → IPPS → OutboxWorker
